Factory Race Series 2.0 ATS Stabilizer - 983-02-148

by FOX
$439.95
SKU 983-02-105

With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pulls steering force felt by the driver as the stabilizer attempts to return to its neutral state.u00a0To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.

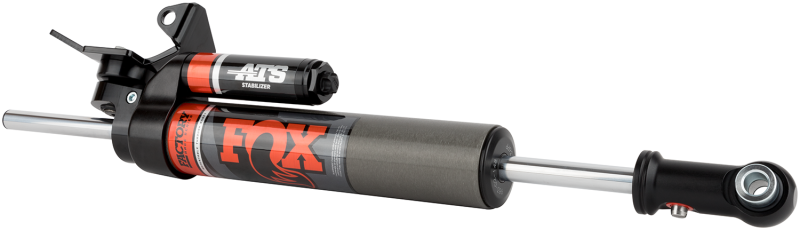

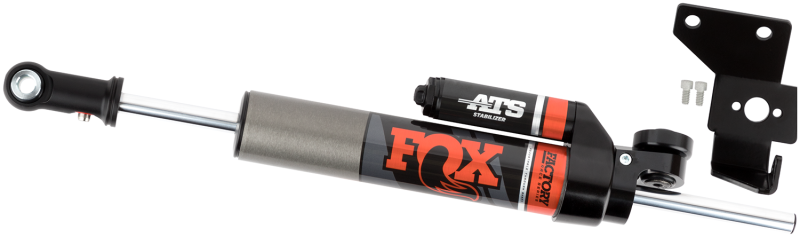

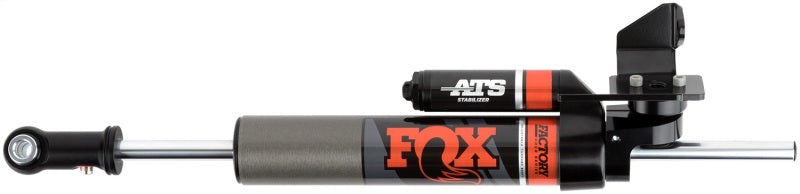

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizeru2019s entire travel in both directions. The external piggyback reservoir provides additional fluidu00a0capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation.u00a0For increased control that can be tailored to any driving style and setup, anu00a0external adjuster provides 24 clicks of adjustment to fine-tune the feel. The result is a highly customizable andu00a0consistent dampingu00a0of unwanted steering feedbacku00a0in a single, bolt-on stabilizer.u00a0

Body 2.0u201d impact-extruded and CNC machined 6061-T6 clear anodized aluminum body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir External reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application-specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures

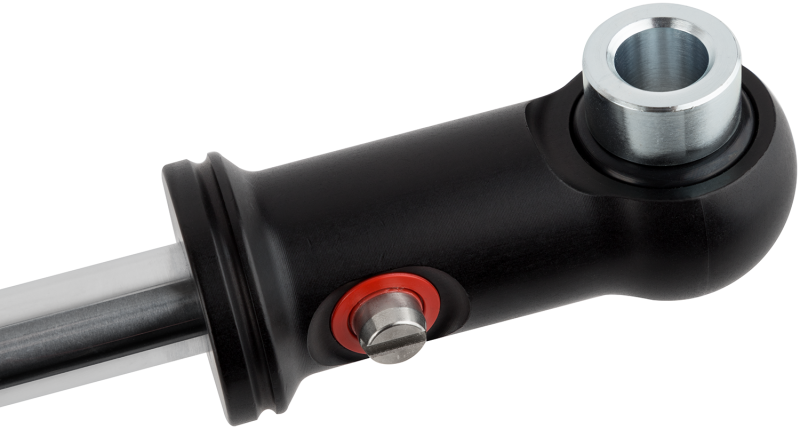

Bushings Quiet nitrile rubber allows for increased suspension articulation
Adjustments Adjuster - 24 clicks of adjustability
Extended 23.200
Compressed 15.100
Travel 8.100
Top Mount Eyelet
Bottom Mount Axle Mount
Fitment notes Axle Mount


LENGTH 28.25 in.
WIDTH 5.00 in.
HEIGHT 2.75 in.
WEIGHT 6.60 lbs.
DIM WEIGHT 2 lbs

DOCUMENTS & LINKS

pdfu00a0u00a0Installation Guide u00bb

pdfu00a0u00a0Off-Road Catalog u00bb

web linku00a0u00a0Warranty u00bb
